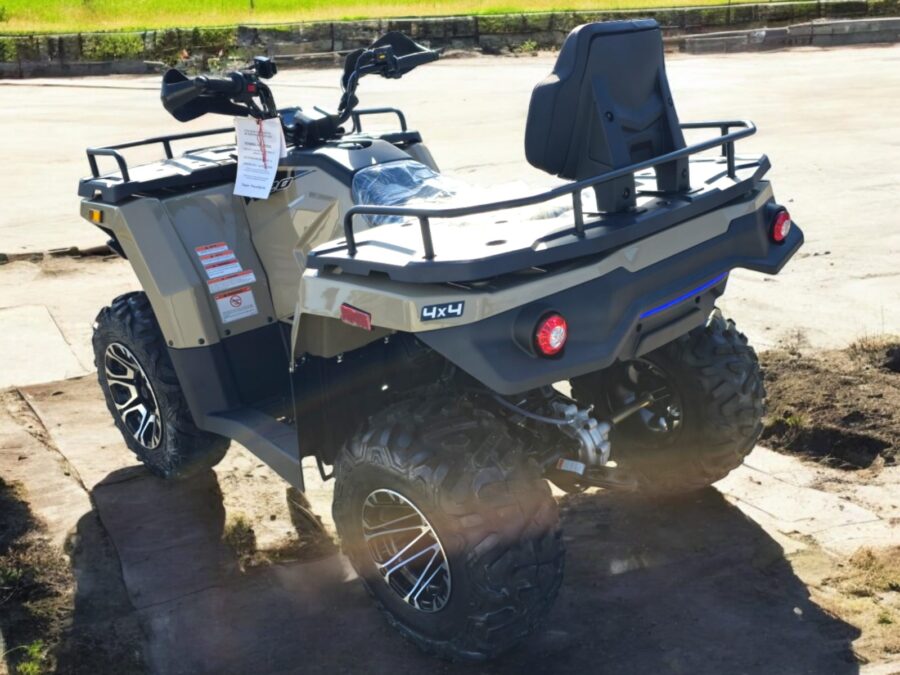

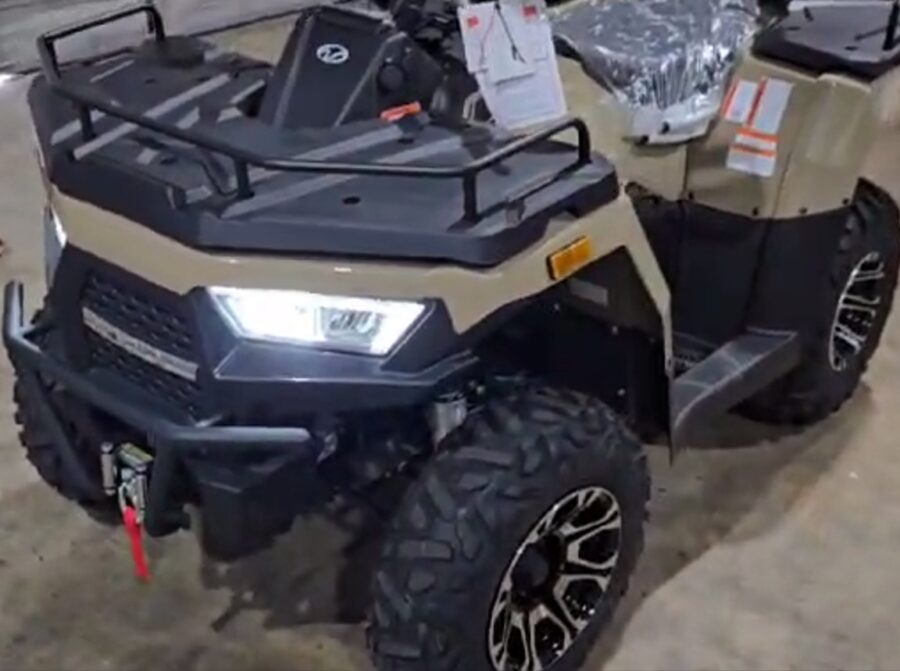

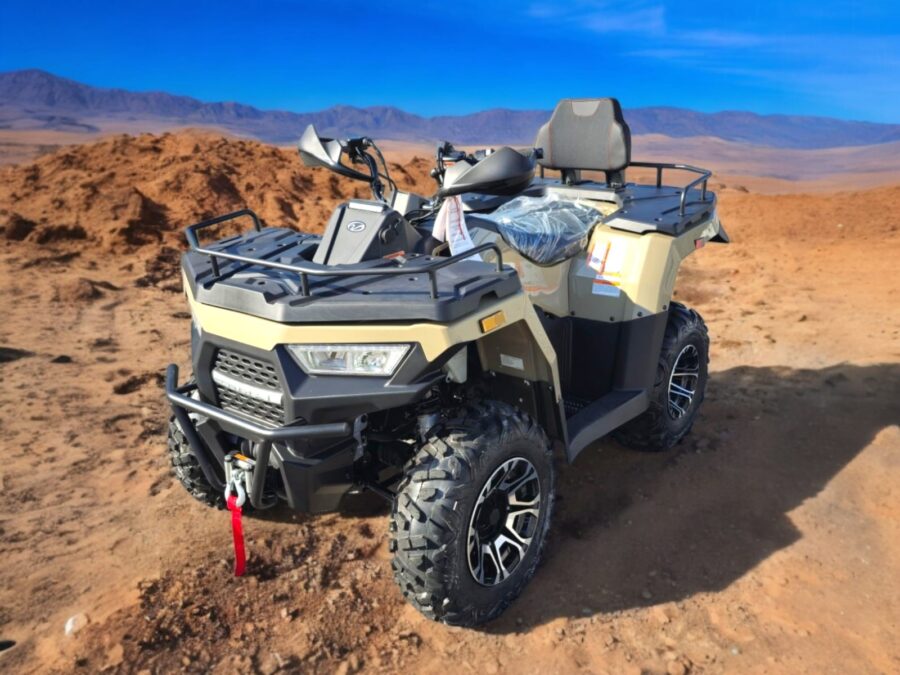

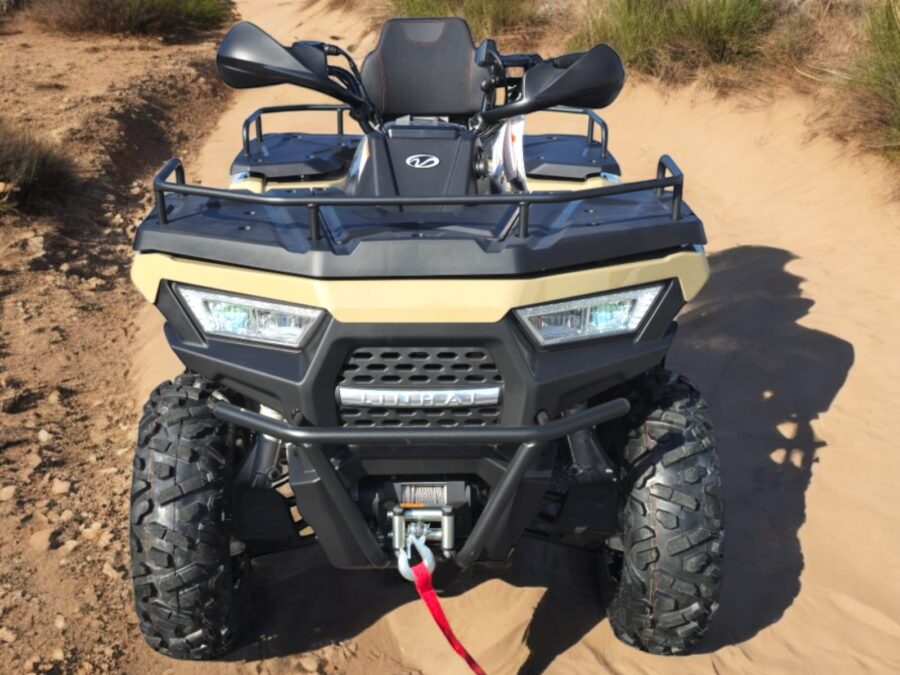

ATV LINHAI 300 cc 4X4 EFI (FUEL INJECTOR) Front Winch, Halogen Lights, Shaft Drive

SPECS. / DESCRIPTION

Size: L×W×H 2120×1140×1270mm
Wheelbase: 1215 mm
Ground Clearance: 183 mm
Dry weight: 295kg
Fuel Tank Capacity: 14 L
Max Speed: >60 km/h
Drive System Type: 2WD/4WD

Specification of tire Front: AT24×8-12
Rear: AT24×11-10
Brake system model Front: Hydraulic Disc
Rear: Hydraulic Disc
Suspension type Front:McPherson independent suspension
Rear:Swing arm

Engine Model: LH173MN
Engine Type: Single cylinder,4 stroke, water cooled
Engine Displacement: 275 cc
Bore and Stroke: 72.5×66.8 mm
Max Power: 16/6500~7000 (kw/r/min)
Horse Power 21.4 hp
Max Torque 23/5500 (Nm/r/min)
Compression Ratio: 9.5:1
Fuel System: EFI
Start Type: Electric starting
Transmission: H-L-N-R
