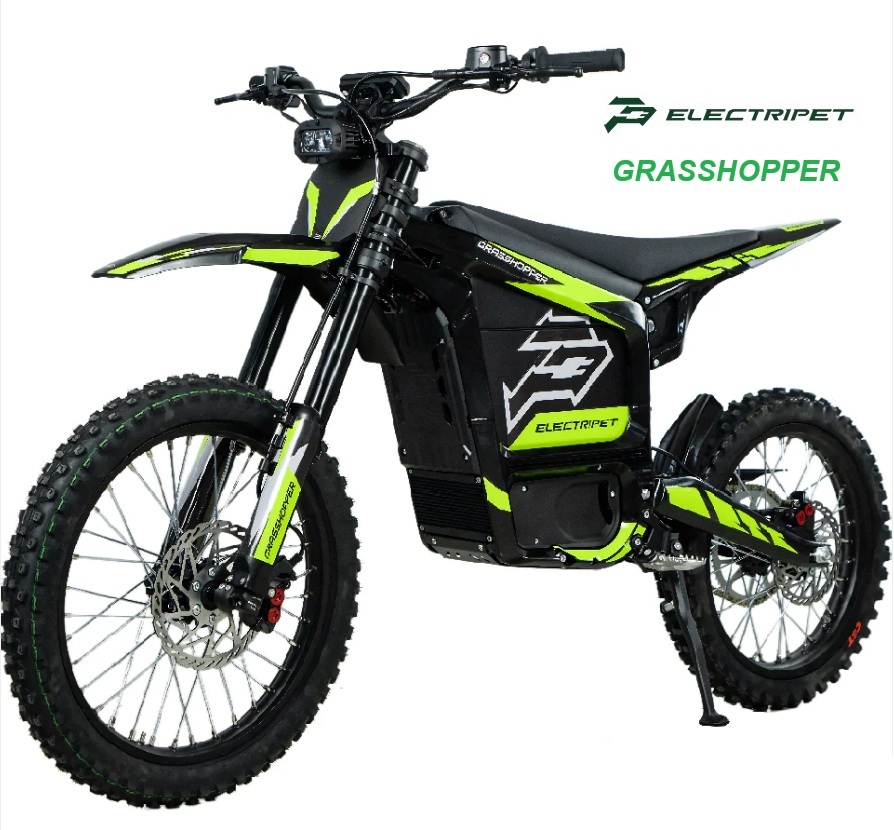

DIRT BIKE ELECTRIC ELECTRIPET GRASSHOPPER POWER, SPEED & STYLE

HIGH-EFFICIENCY MID-MOUNTED MOTOR

IP67 protection level, can withstand a maximum temperature of 155°C

REALIZE KINETIC ENERGY RECOVERY, REAL-TIME MONITORING OF SPEED AND TORQUE

SPECIFICATION:

POWER SYSTEM: PMSM (Mid-Drive) FOC SINEWARE CONTROLLER

RANGE: 115 km @ 45 km/h (72 miles @ 28 mph )

MAX SPEED: 110 km/h (68.35 mph)

0-50KM/H ACCELERATION: 2.3 Seconds

BATTERY: 72V / 50ah LITHIUM-ION

CURB WEIGHT BATTERY INCLUDED: 68 KG (149.9 LBS)

CARRYING CAPACITY: 150 KG (330.6LBS)

Ground Clearance: 300 mm (11.8 inch)

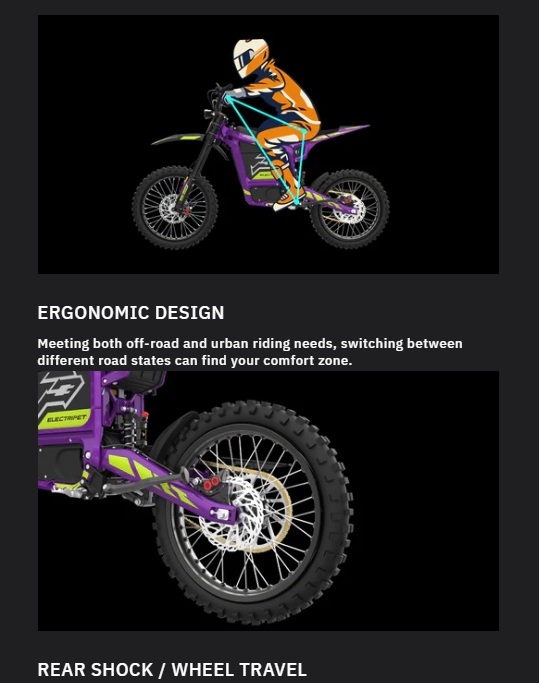

Seat Height: 890 mm (35 inch)

WHEEL BASE: 1320 mm (52 inch)

SEAT HEIGHT: 858MM (33.7 INCH)

Front Fork Length/Travel: 775mm (30.5 inch) / 220mm (8.7 inch)

Rear shock Length/Travel: 72mm (2.8 inch) / 208mm (8.2 inch)

FRAME MATERIAL: FORGED ALUMINIUM ALLOY

TRANSMISSION: PRIMARY BELT & 420 DRIVE CHAIN

BRAKE SYSTEM:

FR: 220MM FLOATING DISC BRAKE

RR: 203MM SOLID DISC BRAKE

TIRE SIZE:

FR: 80/100-19, CST

RR: 90/90-18, CST

Wheel Material: Aluminum Alloy

Rated Power / Peak Power: 6 kW / 12.5 kW (8 hp / 16.76 hp)

Torque: 430 N.m

Charging Time: 2 HOUIRS (20%-80%)

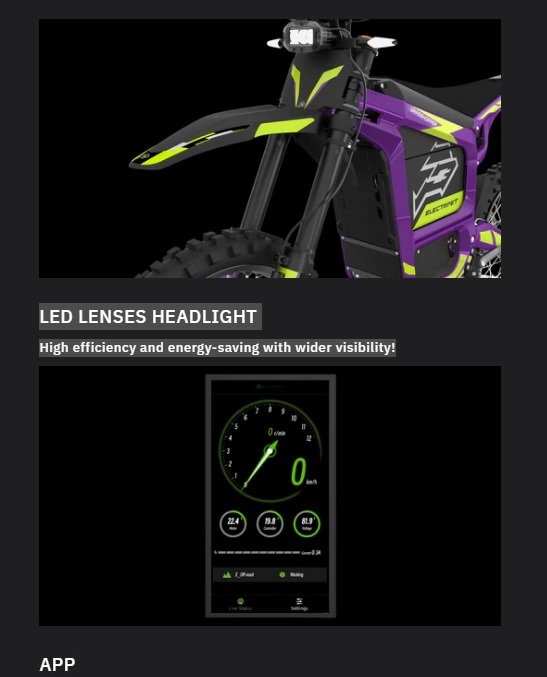

Dash: IP66 3.9-Inch TFT LCD

Storage Capacity: 6.6 Liters

Assistant Functions:

APP Connection , Multiple Riding Modes, LED Headlight, Multi-stage Energy Recovery

Dimension: 1946 mm x 825 mm x 1186 mm （76.6 inch x 32.5 inch x 46.7inch ）



https://www.youtube.com/watch?v=2jVgP1PW-iQ

Legal Disclaimer & Safety Warning

Off-Road Use Only

All vehicles sold by Outlaw Motos, including but not limited to Dirt Bikes, ATVs, E-Bikes, and Go-Karts, are designed and intended strictly for off-road use on closed courses or private property. These vehicles are not street-legal and should never be operated on public roads, highways, or paved surfaces unless specifically designated by local law.

Assumption of Risk

Motorsports and off-road riding are inherently dangerous activities. By purchasing and operating a vehicle from Outlaw Motos, the customer acknowledges and assumes all risks of serious injury or death. Outlaw Motos is not liable for any accidents, injuries, or property damage resulting from the use or misuse of our products.

Safety Measures & Protective Gear

Your safety is your responsibility. We strongly urge all riders to:

• Always wear a USDOT-approved helmet, eye protection, and full protective clothing (boots, gloves, long pants).
• Never operate a vehicle under the influence of drugs or alcohol.
• Ensure riders under the age of 16 are under constant adult supervision and riding age-appropriate models.

Prohibition of Engine Alterations

The customer agrees not to alter, modify, or “tune” the engine or speed controller to increase the factory-set top speed. Modifying the engine or electrical components can make the vehicle unstable, unsafe, and will immediately void all warranties. Outlaw Motos is not responsible for any mechanical failure or injury caused by unauthorized modifications.

Maintenance Responsibility

The owner is solely responsible for the ongoing maintenance and safety inspections of the vehicle. Always check tire pressure, brakes, and bolt tightness before every ride.

---
